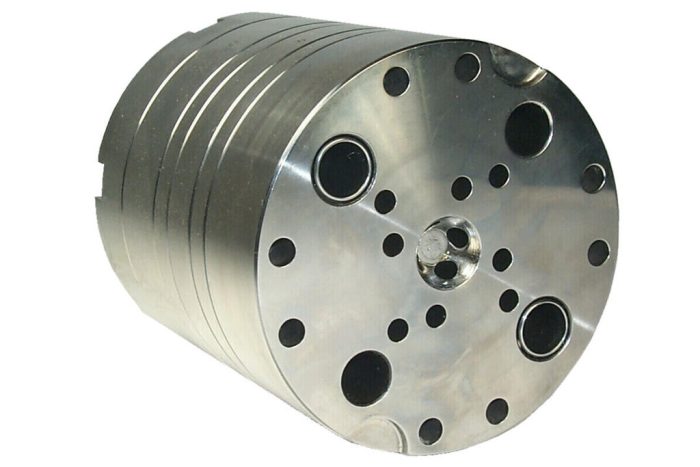

The Zenith Planetary pump series supports manufacturing operations melt fiber production maximizing yields and run times. Planetary metering pumps provide multiple output streams in a compact pump design. These pumps are ideal for fixed displacement applications requiring 2 or more outputs.
PRECISION GEAR PUMPS
Precision gear pumps are an integral part of many manufacturing processes requiring metering, mixing, dispensing, coating, and extruding, where accuracy and uniformity of flow are critical. That’s why manufacturers in industries from manmade fibers and polymers to food and medical devices have relied on Zenith gear pumps since 1926. With high metering accuracy, pulse-free flow, and long wear life across a wide range of fluid and pressure conditions, the Zenith Pumps brand is synonymous with high performance and reliability.
In addition to standard product offerings, Zenith can provide custom-engineered pumps for demanding services, such as submersible, flushable, and sanitary applications. Backed by the resources of CIRCOR Engineered Systems group, Zenith Pumps can provide a complete custom-engineered system along with the pump, from the tank to the controls, letting you focus on your core competency while we develop a fluid handling, mixing, or metering system aimed at providing the highest precision and reliability possible.
Product Models and Specifications:
| ZENITH Planetary | |
| Available Capacities | 0.4 – 6.0 cm3 / rev /port |
| Flow Rate | 2 – 144 cc/min/stream |
| Max Operating Temperature | 644F (340C) |
| Max Pressure Differential | 7,200 psi |
| Max Viscosity | 500,000 cps |
Precise, Pulseless, Repeatable Performance in Hot Melt Spin Pump Applications
The pumps are available in configurations with 2, 3, 4, 6, or 8 metered outlet streams per pump and in displacements covering the throughput range of 0.1 to 8 liters/hour per stream
Planetary pump models offer greater stream to stream process temperature uniformity resulting in improved yarn consistency and processability as compared with multi gear level style pumps.
Planetary
Available Capacities: 0.4 – 6.0 cm3 / rev /port
Flow Rate: 2 – 144 cc/min/stream
Max Operating Temperature: 644F (340C)
Max Pressure Differential: 7,200 psi
Max Viscosity: 500,000 cps
