Goulds LF 3196 Pumps (Low Flow)
General
The LF 3196 i-FRAME process pump line is specifically designed to provide superior performance for low flow services of the Chemical Process Industries.
Applications
- Specialty Chemicals
- Batch Chemical Process
- Reactor Feed
- Shower Service
- Boiler Feed
- Condensate
- High Pressure Process
- Column Reflux
- Column Bottoms
- Hot Oil
- Seal Water
Specifications
pecifications
- Capacities to 220 GPM (50 m3/hr)
- Heads to 925 feet (282 m)
- Temperatures to 700° F (371° C)
- Pressures to 450 PSIG (3102 kPa)

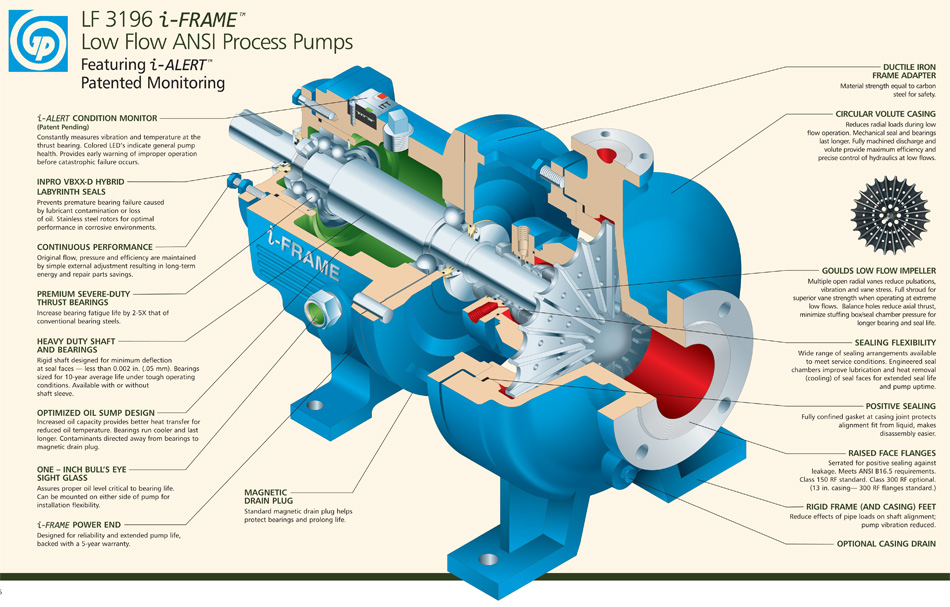

Design Features
Extended Pump Life
- Concentric (Circular) Casing
- Radial Vane Impeller
- TaperBoreTM/ BigBoreTM Seal Chambers
- i-FRAME Power Ends
- ANSI PLUSTM Features
- Optional Centerline Mounted Casings
Ease of Maintenance
- Back Pull-out Design
- Parts Interchangeable with Goulds Model 3196 i-FRAME
- External Impeller Adjustment
- Easy Retrofit
Safety
- ANSI B15.1 Coupling Guard
- Ductile Iron Frame Adapter
- Raised Face Flanges
- Optional Shaft Guard
Features
High Temperature Service
For high temperature services
Reduced Radial Loads
Reduced Radial Loads for Optimum Reliability
i-Series Power Ends
Designed for Reliability, Extended Pump Life
Maximum Sealing Flexibility
Goulds provides the best choice of stuffing box or seal chamber and a wide range of sealing arrangements.
Trouble-Free Operation at Low Flows
Specifically designed for trouble-free operation.
End Suction Pumps
Not all end suction pumps are designed for low flows .
Bonus Interchangeability
Minimize inventory, reduce downtime
New 5 Year ANSI Pump Warranty
The best warranty in the market
