Product Models and Specifications:
| ZENITH B Series |
BPB Series |
BMB Series |
BMC Series |
BLB Series |
BXB Series |
| Available Capacities |
0.16 – 2.92 cc / rev |
5 – 6 cc / rev |
11.1 – 27.8 cc / rev |
5 – 100 cc / rev |
100 – 200 cc / rev |
| Flow Rate |
0.025 – 8.3 GPH |
0.88 – 16 GPH |
1.79 – 79.3 GPH |
0.8 – 285 GPH |
15.85 – 570 GPH |
| Max Operating Temperature |
300F (150C) |
300F (150C) |
300F (150C) |
300F (150C) |
300F (150C) |
| Max Inlet Pressure |
Up to 500 psi |
Up to 300 psi |
Up to 300 psi |
Up to 500 psi |
Up to 300 psi |
| Max Discharge Pressure |
Up to 1,500 psi |
Up to 1,000 psi |
Up to 500 psi |
Up to 3000 psi |
Up to 3,000 psi |
| Viscosity Range |
Up to 100,000 cp |
Up to 100,000 cp |
Up to 100,000 cp |
Up to 500,000 cp |
Up to 2,000,000 cp |
General Information
Other data
Design standard: Manufacturer STD
Fluids: Adhesives, Catalysts, Coatings, Colorings, Dyes, Flavorings, Lubircants, Oils, Paints & Lacquers, Perfumes, Resins, Urethanes
Sealing: Packing, Lip seals, Single Mechanical seal
Performance Data
BPB Series
Available Capacities 0.16 – 2.92 cc / rev;
Flow Rate 0.025 – 8.3 GPH;
Max Operating Temperature 300F (150C);
Max Inlet Pressure Up to 500 psi;
Max Discharge Pressure Up to 1,500 psi;
Viscosity Range Up to 100,000 cp;

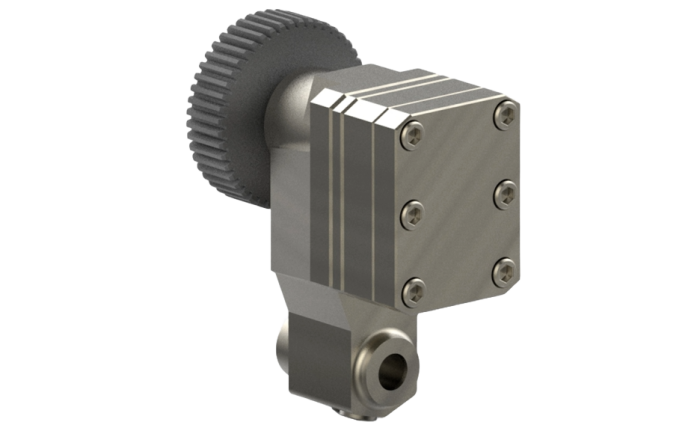

BMB Series
Available Capacities 05 – 6 cc / rev;
Flow Rate 0.88 – 16 GPH;
Max Operating Temperature 300F (150C);
Max Inlet Pressure Up to 300 psi;
Max Discharge Pressure Up to 1,000 psi;
Viscosity Range Up to 100,000 cp;
BMC Series
Available Capacities 11.1 – 27.8 cc / rev;
Flow Rate 1.79 – 79.3 GPH;
Max Operating Temperature 300F (150C);
Max Inlet Pressure Up to 300 psi;
Max Discharge Pressure Up to 500 psi;
Viscosity Range Up to 100,000 cp;
BLB Series
Available Capacities 5 – 100 cc / rev;
Flow Rate 0.8 – 285 GPH;
Max Operating Temperature 300F (150C);
Max Inlet Pressure Up to 500 psi;
Max Discharge Pressure Up to 3000 psi;
Viscosity Range Up to 500,000 cp;
BXB Series
Available Capacities 100 – 200 cc / rev;
Flow Rate 15.85 – 570 GPH;
Max Operating Temperature 300F (150C);
Max Inlet Pressure Up to 300 psi;
Max Discharge Pressure Up to 3000 psi;
Viscosity Range Up to 2,000,000 cp;
Flow rate
Max gpm: 9.50
Max lpm: 35.96
Max m³/hr: 2.16
Max diff pressure
Max bar (dp): 206.84
Max psi (dp): 3000.00
Viscosity
Max cSt [mm²/s]: 2000000.00
Min cSt [mm²/s]: 1.00
Min SSU: 28.50
Temp
Max C°: 149.00
Max F°: 300.00
Min C°: -18.00
Min Fº: 0.00
Precision gear pumps are an integral part of many manufacturing processes requiring metering, mixing, dispensing, coating, and extruding, where accuracy and uniformity of flow are critical. That’s why manufacturers in industries from manmade fibers and polymers to food and medical devices have relied on Zenith gear pumps since 1926. With high metering accuracy, pulse-free flow, and long wear life across a wide range of fluid and pressure conditions, the Zenith Pumps brand is synonymous with high performance and reliability.
