Cast iron, bronze, AISI316L versions are available. Pressures of a max of 15 bar. They can be equipped with a built-in by-pass valve or alternatively with a preheating chamber.

APPLICATIONS

The main sectors of application for the F – FT/FM series gear pumps are:

• Pouring and pushing of diesel oil or naphtha to liquid fuel burners with pneumatic atomization.
• “Ring” pump in liquid fuel supply systems to burners/boilers.
• Loading/unloading of diathermic oils in boilers.
• Conveyance of additives into the dispensers for concrete.
• Lubrication of refrigeration compressors (oil + traces of ammonia or freon).
• Lubrication of large gearboxes.
• Circulation of oil in industrial dry cleaning machines.
• Circulation of oil in large electrical transformers.
• Metering of colors in laboratory machines for the textile and automotive industries.
• Conveying of emulsified water.
• Pushing of oils – naphtha – diesel in tank/pump/volumetric meter/gun systems.
• Handling of low viscosity liquids such as water – additives – solvents etc.
• Conveying of liquids in the food industry.

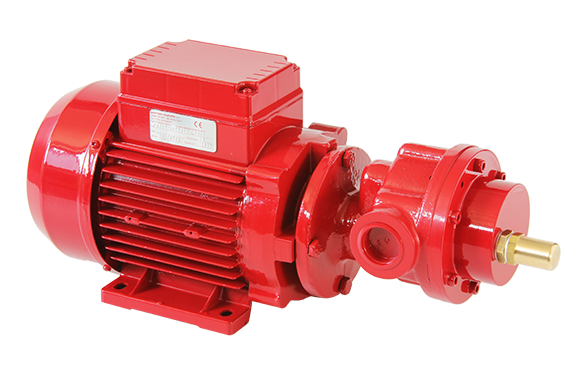

FTG-FMG-FMZ-FMX SERIES GEAR PUMPS
Gear pumps flanged directly to a motor of our design with special flange and shaft output.
The motor shaft acts as the driving shaft of the pump. In the cast iron version, two motors are provided: one for a maximum pressure of 5 bar (FT series) – one for a maximum pressure of 10 bar (FM series).

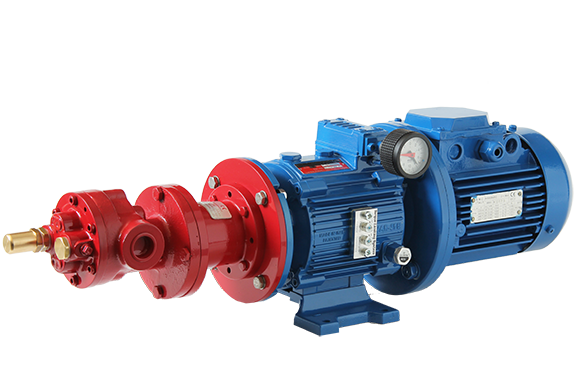

FG-FZ-FX SERIES GEAR PUMPS
Flanged gear pumps equipped with lantern and machined joint for application to standard motors B3/B14 size 71-80-90-100-112.The construction of this series of gear pumps complies with the 2006/42/CE, 2014/30/UE, 2014/35/UE directives and the UNI EN ISO 12100, UNI EN ISO 13732-1, UNI EN 809, UNI EN ISO 14847 standards. On request versions compliant with the 2014/34/EU (ATEX) directive and with the API 676 – NACE MR0175 standards; it is also available with EAC (CU TR 010) – CU TR 012 certification.
