PLEUGER Industries / Pumps
Are renowned for being the reliability experts for submersible pump and motor systems and related services in critical industrial applications. Pleuger pump products are engineered and manufactured in Germany and used all over the world. PLEUGER submersible motors and pumps are recognised as premium solutions with superior quality and reliability over other bore hole pump manufacturers.

Best-in-class submersible pump units built for reliability and performance.
PLEUGER designs offer significant benefits for water and mining pump applications within the water & energy, marine and offshore, oil and gas and mining industries, such as dewatering, water transfer and water supply.

Key features

• Highly efficient motors and pump hydraulics
• Cost-effective lifecycle
• zero maintenance
• 30 year design life
• Reliable operation, even under extreme conditions
• Heavy-duty capacity in harsh environments
• Heavy-duty Thrust Bearings for extended lifetime
• Advanced hydraulics available for best-in-class performance
• Drinking water safe
• Flood-proof
• Safe against freezing
• Explosion-proof
• Reduced noise and vibration
• Space efficient installation in wells
• Flexible installation options: vertical, horizontal, inclined, parallel
• Optional Permanent Magnet Motor (PMM) technology
• Range of material grades
• Optional installation accessories

PLEUGER Submersible Pumps

• 4’’ to 50’’
• Single-stage / Multi-stage
• Flows to: 6000 m³/h / 26,417 gpm
• Heads to: 800 m / 2,625 ft
• Temperatures (Standard): -30 °C to 50 °C / -22 °F to 122 °F
• Temperatures (on Request): -25 °C and 95°C / -13 and 203 °F
• Higher temperatures on request
• Depth up to: -4000 m / -13,223 ft
• Deeper on request

Pump types

• Deep Well
• Cavern

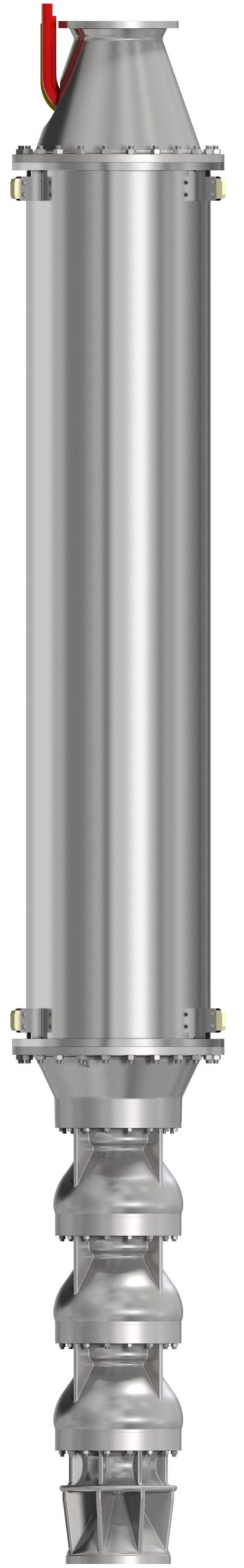

• Bottom Intake
• Booster
• Flood

PLEUGER Submersible Motors
As a manufacturer of world-class submersible motors, every PLEUGER product is designed, engineered and manufactured to the highest standards for efficiency, corrosion protection, and an extended power range.

Key features

• Water-filled motors as standard
• Oil-filled motors on request
• Suitable for VFD operation
• Operating temperature
  up to 100°C
• Rewindable

Standard motors

• 4’’ to 50’’
• Induction motor, Asynchronous motor
• Power output: 0.37 kW to 5 MW (0.5 HP to 6,705 HP)
• Operating speed: 200 to 3600 rpm – 2,4,6 pole designs
• 200 V to 11 kV / 50 and 60 Hz

PMM motors

• 6” to 8”
• Synchronous motor
• Power output: 4.0 to 200 kW (5.36 HP to 238 HP)
• Operating speed: 2100 to 3600 rpm (max 3800 rpm) 4 pole design
• Driven by Variable Frequency Drive (VFD)

VFD input voltage 400 to 500 V / 70 and 120 Hz

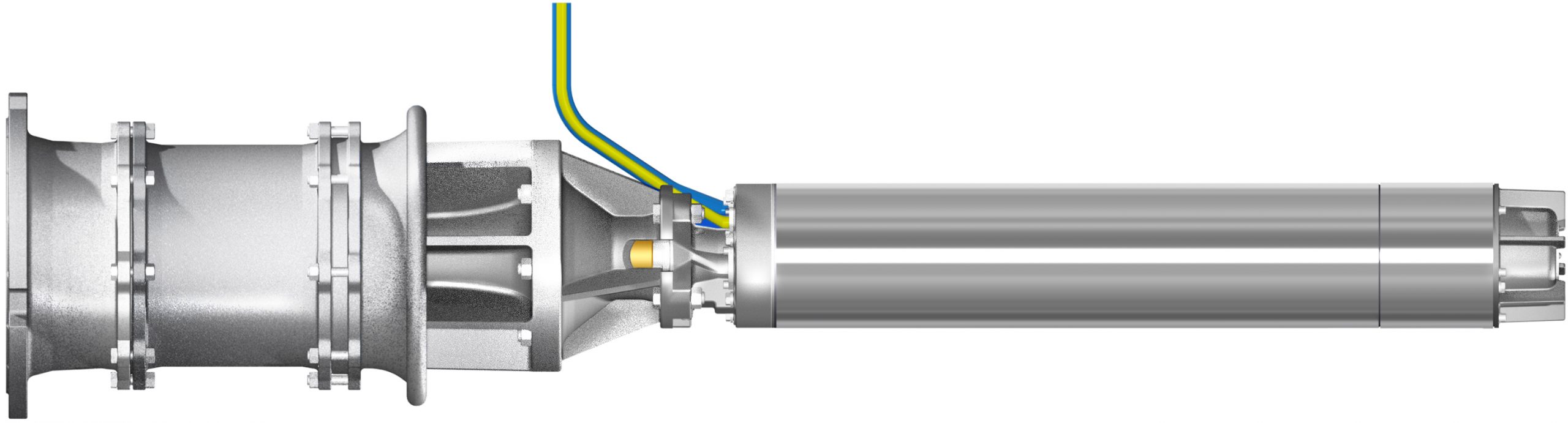

PLEUGER Axial flow Pump units
Built for absolute reliability and performance, available as single- or multi-stage pumps with axial hydraulic designs and water-filled motors, PLEUGER axial flow pumps are designed to pump large volumes of water at low pressure.

•     Discharge flow: 100 m³/h – 20,000 m³/h (or higher on request)
•     Discharge head: 2 m – 20 m (6.6 – 65.6 ft)
•     Motors from 6” to 50” with rewindable design
•     Water-filled motors as standard, or oil-filled motors for special applications: 0.37 kW – 5 MW (0.5 HP to 6,700 HP)
•     Water-filled synchronous motors (Permanent Magnet Motors): 5 kW – 200 kW (6.7 to 268 HP)
•     Voltage range: 230 V – 6.6 kV (11kV on request)
•     2-pole to 12-pole motor designs for 50 Hz and 60 Hz
•     Multiple materials available
•     Pump impellers in bronze
•     Pump bowls in cast iron or bronze

For more information see manufacturers website at https://www.pleugerindustries.com
