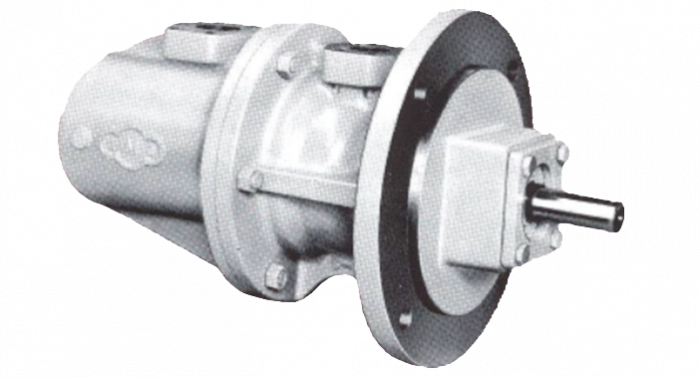

The 4T series is produced in a cast steel casing with a combined foot/flange mounting arrangement. The pump is primarily used for medium pressure gas sealing applications on compressors.
The 4U series pump is intended primarily as a medium pressure fluid power pump. It is available foot or flange mounted and is suitable for cyclic pressure service.
THREE-SCREW PUMPS
Discover our three-screw pumps – the clear choice for superior performance and versatility. The unique design with three interlocking spindles provides an extremely efficient and smooth flow, resulting in impressive overall efficiency.
In addition to excellent controllability, the self-priming pumps offer minimal pulsation and remarkably quiet operation, even at high discharge pressures.
Our three-screw pumps are true all-rounders, capable of handling a wide range of fluids of varying viscosities – from low-viscosity fluids to highly viscous substances. It’s robust design and the high wear resistance of the spindles ensure reliability and long life, making them the ideal choice for critical applications in a variety of industries.
The 4U series pump is intended primarily as a medium pressure fluid power pump. It is available foot or flange mounted and is suitable for cyclic pressure service.
The 4T series is produced in a cast steel casing with a combined foot/flange mounting arrangement. The pump is primarily used for medium pressure gas sealing applications on compressors.
This 4T/4U series is available in
Nominal flow rate, GPM/LPM, at 1500 PSI (103 BAR), 200 SSU (43 CST)
SPEED RPM
| 4U/4T Series Size |
3500 | 2900 | 1750 | 1450 | 1150 | 960 |
| 137 | 26/98 | 20/5 | – | – | – | – |
| 156 | 39/150 | 31/116 | 14/52 | – | – | – |
| 187P | 56/213 | 44/167 | 21/78 | 14/55 | – | – |
| 187 | 72/271 | 56/214 | 27/103 | 20/74 | – | – |
| 200 | 88/334 | 70/264 | 34/130 | 25/95 | – | – |
| 218 | 118/446 | 94/354 | 47/178 | 35/132 | 23/87 | – |
| 250 | 180/682 | 144/545 | 75/283 | 57/214 | 39/146 | – |
Maximum Speed*- Sizes 137 & 156: 4400 RPM. Sizes 187 & UP: 3600 RPM. Special pumps available to 8000 RPM with boosted inlet pressure. Consult Imo Pump.
* Assumes minimum inlet pressure requirements are met.
Steel case, Dry installation, Horizontal or vertical installation, Self priming, Mechanical shaft seal
Other data
Design standard: Manufacturer STD
Fluids: Fuel Oils, Lubrication Oils, Oils > Crude Oil
Sealing: Single Mechanical seal
Capacity up to: 200gpm
Pressure up to: 1500psiD
Viscosity range: 32 to 3500ssu
Speed up to: 3600 rpm
Max gpm: 200.00
Max lpm: 757.08
Max m³/hr: 45.42
Max bar (dp): 103.42
Max psi (dp): 1500.00
Max cSt [mm²/s]: 647.60
Max SSU: 3000.00
Min cSt [mm²/s]: 10.30
Min SSU: 60.00
Max C°: 82.00
Max F°: 180.00
Min C°: -18.00
Min Fº: 0.00
