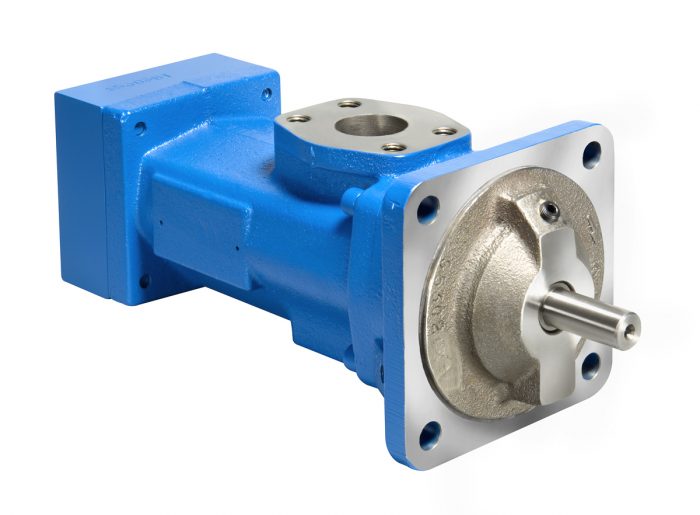

Photo of 3G Series triple screw pump in blue

IMO 3 Screw Pumps – 3G Series

INDUSTRY LEADING PRODUCTS, SERVICES AND SOLUTIONS

MFG in Columbia, KY USA

The 3G series pump is intended for use in lubrication, hydraulic and control oil services. Series 3G pumps are provided for differential pressures to 250 PSIG (17.2 Bar) and flow rates to 55 GPM (208 L/M). Mountings include foot or flange. Casing materials are either cast iron or steel. These three screw pumps are used for distillate fuel oil transfer and burner services, machinery lubrication and other industrial pumping applications. Most sizes are available with a tamper resistant built-in pressure relief valve for protection of the pump from momentary pressure overloads.

KEY FEATURES OF

IMO 3G Series Three Screw Pumps

PRODUCTS

Triple Screw Pumps

INDUSTRIES

General

THREE-SCREW PUMPS

The Superior Pumping Technology

Discover our three-screw pumps – the clear choice for superior performance and versatility. The unique design with three interlocking spindles provides an extremely efficient and smooth flow, resulting in impressive overall efficiency.

In addition to excellent controllability, the self-priming pumps offer minimal pulsation and remarkably quiet operation, even at high discharge pressures.

Our three-screw pumps are true all-rounders, capable of handling a wide range of fluids of varying viscosities – from low-viscosity fluids to highly viscous substances. It’s robust design and the high wear resistance of the spindles ensure reliability and long life, making them the ideal choice for critical applications in a variety of industries.

KEY BENEFITS

IMO 3G Series Three Screw Pumps offers:

Designed to decrease maintenance and increase intervals between service
Reduces energy costs
Available in 17 displacements fitted into five casting sizes
Intended for use rotating machinery or other equipment needing forced lubrication, circulation or fluid transfer
Flange or foot mounting available for all sizes

Additional Information

Specifications

GENERAL INFORMATION AND PERFORMANCE DATA

IMO 3G Series

Series 3G pumps are provided for differential pressures to 250 PSIG (17.2 Bar) and flow rates to 55 GPM (208 L/M). Mountings include foot or flange. Casing materials are either cast iron or steel. These three screw pumps are used for distillate fuel oil transfer and burner services, machinery lubrication and other industrial pumping applications. Most sizes are available with a tamper resistant built-in pressure relief valve for protection of the pump from momentary pressure overloads.

This 3G Series available in
Nominal flow rate, GPM/LPM, at 200 PSI (14 BAR), 100 SSU (20 CST)
SPEED RPM

3G Series Size	3500	2900	1750	1450
095-1.2D	5/18	4/14	–	–
095-1.6D	6/25	5/18	–	–
095-2.0D	9/33	7/26	3/11	–
118-1.6D	14/52	11/40	5/17	–
118-2.0D	18/69	14/54	7/26	5/19
143-1.5D	25/94	20/75	10/37	7/27
143-1.7D	28/105	22/82	11/40	8/29
143-2.0D	34/128	27/101	14/52	10/39
162-1.6D	38/144	30/114	15/56	11/42
162-2.0D	50/188	40/151	21/78	16/60

Connections-

	Case Material
Inlets	Iron	Steel
Axial, straight thread	Standard	N/A
Axial, SAE pad	Optional	Standard
Radial, straight thread	Optional	N/A
Radial, SAE pad	Optional	Optional
Outlets
Radial, straight thread	Standard	N/A
Radial, SAE pad	Optional	Standard

Straight thread for use with o-ring fittings. SAE pad is for use with mating SAE 4-bolt 3000 PSI flanges. N/A is not available.

General Information

Construction features

Iron or steel case, Dry installation, Horizontal or vertical installation, Self priming, Mechanical shaft seal or sealless

Other data

Design standard: Manufacturer STD

Fluids: Fuel Oils, Lubrication Oils

Sealing: None, Single Mechanical seal

Performance data

Capacity up to: 200gpm

Pressure up to: 250psiD

Viscosity range: 32 to 3500ssu

Speed up to: 3600 rpm

Max gpm: 200.00

Max lpm: 757.08

Max m³/hr: 45.42

Max diff pressure

Max bar (dp): 17.24

Max psi (dp): 250.00

Viscosity

Max cSt [mm²/s]: 3238.50

Max SSU: 15000.00

Min cSt [mm²/s]: 1.80

Min SSU: 32.00

Temp

Max C°: 107.00

Max F°: 225.00

Min C°: -18.00

Min Fº: 0.00

IMO 3 Screw Pumps – 3G Series
