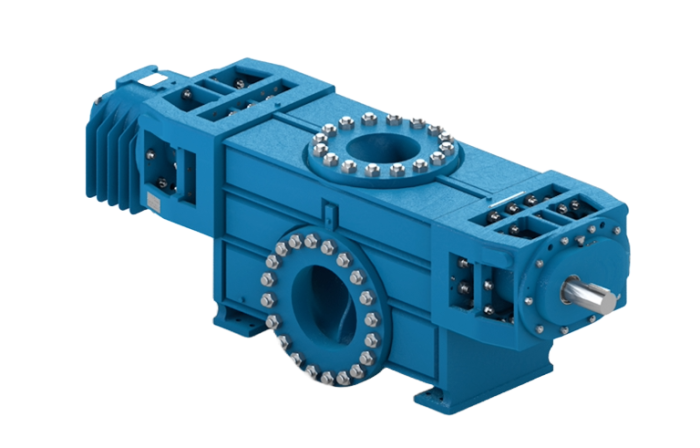

Houttuin Twin Screw Pumps – WARREN JAGUAR 2200 SERIES

J-10X, J-20X, J-30X, J-40X, J-50X, J-60X, J-70X, J-80X

VERSATILE TWO-SCREW SPECIALTY PUMPS ACCOMMODATE VIRTUALLY ANY FLUID

The versatile Jaguar series of Warren brand positive displacement screw pumps offers flexible design and material options for nearly any flow, pressure and
viscosity requirement. Notable for their ability to provide very low NPSHr, Warren Jaguar pumps are ideal for tank unloading and high viscosity fluids, where NPSHa may be severely limited. Like all two-screw pumps, they are low shear, so fluids are safely moved in applications ranging from specialized niche processes to boosting.

Warren Jaguar’s unique six-bearing design evolved from more than 50 years of experience in high-pressure applications. Inside of a highly durable solid
cast body and coated surface, customers gain custom engineered solutions for capacities as low as 200 gpm or as high as 4,800 gpm, suction inlet pressures
to 1650 psi, discharge pressures to 2,000 psi, and viscosities as low as 5 cSt or as high as 100,000 cSt. Jaguar’s optional hopper suction design for very low NPSH combined with elevated temperature capability serves high-viscosity applications like polymers, adhesives, asphalt and foods – materials that would otherwise be difficult to get into the pump.

KEY FEATURES OF

WARREN JAGUAR Twin Screw Pumps

BENEFITS

A variety of suction options available
Accommodates most seal designs
Capable of handling shear sensitive fluids
Available in a number of materials
Suited for: chemical, petroleum, power, food or barges

PRODUCTS

Two Screw Pumps

INDUSTRIES

General

HIGH PERFORMANCE MEETS HIGH RELIABILITY

Ability to Handle Multiple Liquids at Multiple Viscosity Rates

Because they’re designed to move fluid at a consistent rate, regardless of pressure, twin-screw pumps deliver results where centrifugal pumps are unable to and are able to actually increase efficiency as viscosity rises.

But twin-screw pumps don’t just offer performance, since they are designed to eliminate metal-on-metal contact which means a longer life, improved reliability and less downtime.

In addition, unlike other pump options, twin-screw pumps can:

Tolerate contamination
Handle a large range of viscosities and fluids
Low NPSH required
Run dry
Low fluid sheer
Operate at variable speeds

And with twin-screw pumps’ ability to handle multiple liquids at multiple viscosity rates, they can be used for a wide range of applications.

Additional Information

Specifications

GENERAL INFORMATION AND PERFORMANCE DATA

WARREN JAGUAR 2200 Series pumps

Specialty JAGUAR Series

The 2200 Series commonly known as the Jaguar Series is a positive displacement pump capable of handling viscosities to 150,000,000 ssu. Basically, the pump is made up of two sets of opposed screws. Each set of screws conveys liquid toward the center of the pump where the discharge port is located. Since hydraulic forces are opposite and equal, the rotor is hydraulically balanced in an axial direction.

Jaguar	GPM	L/M	PSI	BAR
J-10X	15-40	55-150	1000	69
J-20X	30-90	110-340	1000	69
J-30X	60-200	230-757	1000	69
J-40X	90-350	340-1325	1000	69
J-50X	120-600	455-2270	1000	69
J-60X	220-1100	830-4160	800	55
J-70X	420-3000	1590-11350	450	31
J-80X	580-4800	2200-18170	400	28

General Information

Casing and bearing housing – Cast steel, stainless steel or iron, with chrome-plated bores for added lifetime
Rotors – Standard material – 4340 steel (ASTM A668 Class M) with optional hardening and plating available
O-rings – Viton (in contact with pumpage), nitrile (in contact with lube oil)

Performance Data

Casing and bearing housing Cast steel, stainless steel or iron, with chrome-plated bores for added lifetime
Rotors Standard material – 4340 steel (ASTM A668 Class M) with optional hardening and plating available
O-rings Viton (in contact with pumpage), nitrile (in contact with lube oil)
Seal Packing; single or double component mechanical seals; single or double cartridge mechanical seals available
Flow rate range 10 gpm – 4,800 gpm (2 – 1,090 m3/h)
Differential pressure Up to 1000 psi
Outlet pressure 2000 psig (139 bar)
Inlet pressure Up to 1650 psig (114 bar)
Viscosity 5 – 100,000 cSt
Temperature -20° F – 750° F
Speed 1780 rpms
Drive Direct only
Rotation Clockwise facing pump driveshaft
Mounting Horizontal
Port Connections Per ANSI B16.5, 300# inlet, 300# discharge
Accessories Upon request, a temperature and vibration monitor is provided with 1/2” NPT connection
Timing gears Herringbone, hardened
Bearings
Six-bearing design with a double-row

Maximum discharge pressure:

28 – 138 bar/400 – 2,000 PSIG

Maximum flow rate:

38 – 18,170 l/min / 10 – 4,800 GPM

Viscosity:

1 – 100,000 mm2/s

Maximum fluid temperature:

399°C / 750°F
