- ompact Lifting Station
- Easy to Install
- Odor Free
- Sturdy Construction
- Pump from Toilets and Other Grey water sources

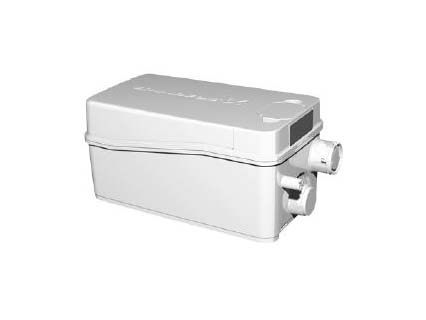

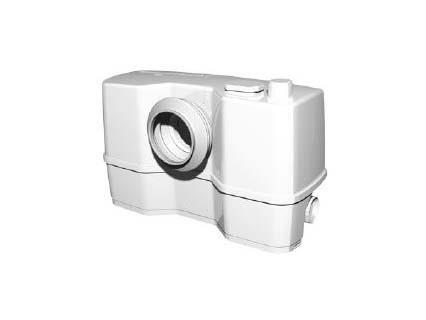

Grundfos SOLOLIFT 2
General
SOLOLIFT2 is a unique range of compact lifting stations enabling a drain of any domestic sanitary appliance wherever needed, independent from the gravity drain system. The units collect and pump the waste water through a thin pressure pipe (>23mm) to the next down pipe – up to 6m high or 100m distance. An extra toilet or a complete bathroom in attic or basement must be no longer only a wish with SOLOLIFT2.
The range consists of 5 compact lifting station variants for disposal of domestic waste water. 3 units, called WC-1, WC-3 and CWC-3, are designed to take waste water from a toilet and further sanitary appliances. 2 units, called C-2 and D-2, are designed to take grey waste water from several objects. The numbers indicates how many additional inlet connections are possible.
SOLOLIFT2 is designed according to the needs of professionals – high reliability and easy, clean service in mind. The units come ready to use with a plug and operate full automatic when water enters the tank.
Wherever the drain of a sanitary appliance is required but no gravity drain pipe is available or possible. The units with a WC connection are dedicated to installation in private homes only. Other units can be utilized also for commercial application.
Related Information
Additional Information
Features
- Ready-to-install solution
- Highest reliability thanks to a high performance cutter and motor
- Handle accidently flushed female articles
- fast, easy and clean service – no need to remove the unit from installation
- Alll relevant service parts dry and clean accessible – not submerged in tank
- Easy access level switch units, single accessible for maintenance
- Pressure proof, welded tank system, leakage free in case of backwater
- Odour-free by venting valve with charcoal filter
- Maintenance free tank design reducing clogging risk
- Hot water resistant up to 90°C for 30 min.
- Very compact design
- Low start levels enable modern, flat shower trays
- Selectable outlet direction (top and side)
- height adjustable inlet connectors ease installation and replacement
- up to 4 inlet pipe and 6 pressure pipe connection selectable
- all units LGA-, VDE-, EMC- and GOST- approved
