Goulds HT 3196 Pumps (High Temperatures)
General
Product Description
Goulds HT 3196 i-FRAME is specifically designed for superior performance for high temperature applications in the chemical industry.
Please see manufacturers website here
Applications
- Hot Water
- Thermal Oils / Heat Transfer Fluids
- Reactor Heating
- Die / Mold Pre-heating systems
- Pilot Plants
- Electronic Heating and Cooling
- Asphalt Preheating
- Urea
Additional Information

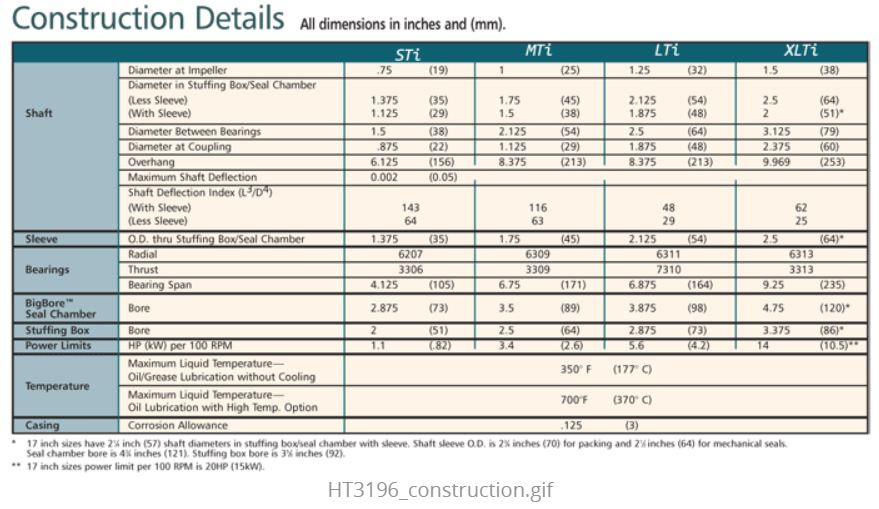

Specifications
Specifications
- Capacities to 4500 GPM (1023 m3/hr)
- Heads to 925 feet (282 m)
- Temperatures to 700° F (372° C)
- Pressures to 450 PSIG (3102 kPa)

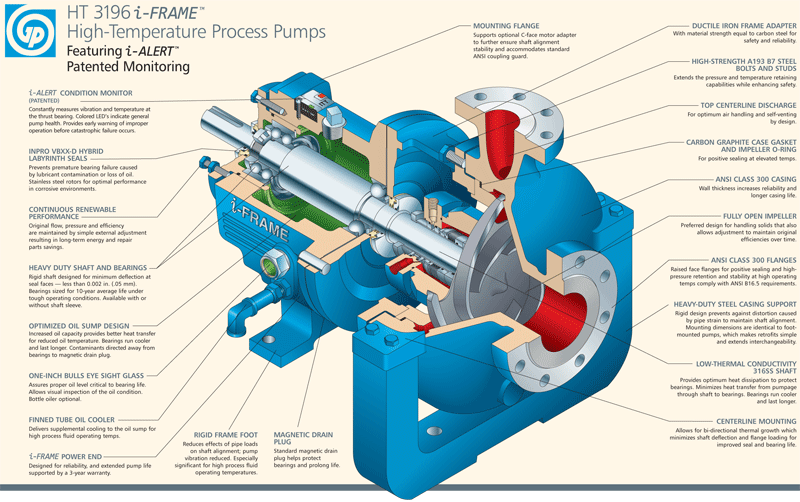

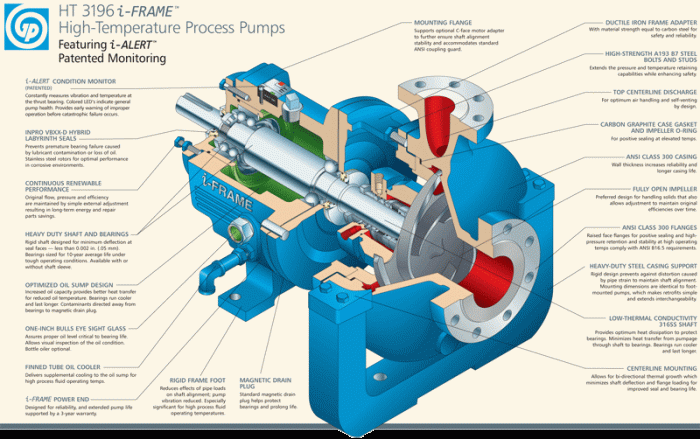

Design Features
- Extended Pump Life
- Standard centerline mounted casing
- ANSI Class 300 RF flanges
- i-FRAME power end
- Stainless steel shaft
- Finned tube oil cooler
- Patented TaperBoreTM PLUS Seal Chamber
- i-FRAME power ends
- BigBoreTM Seal Chambers
- Ease of Maintenance

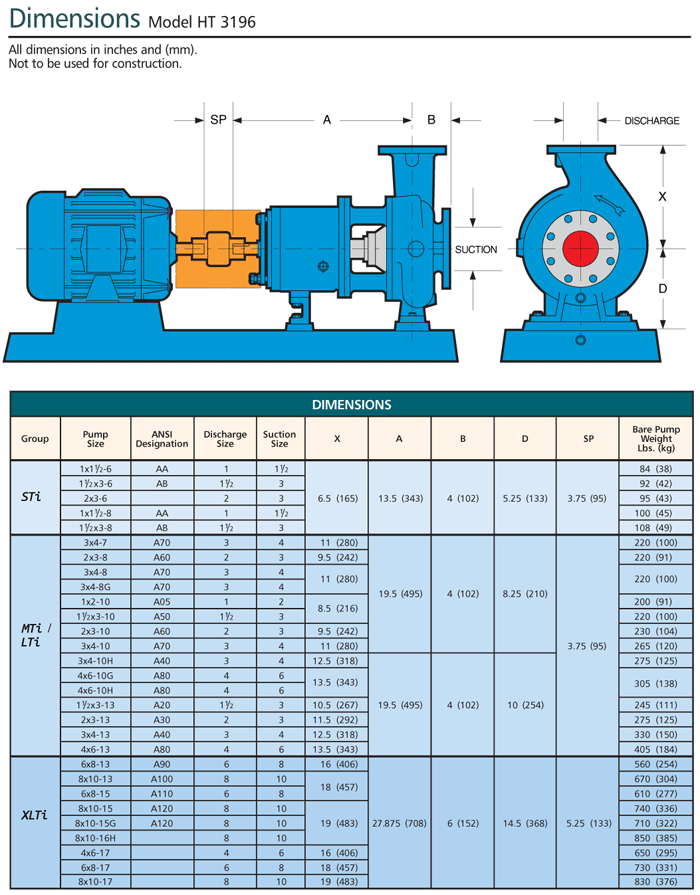

- ANSI B73.1M and PIP RESP 73H-97 dimensional compliance
- Back Pull-out Design
- External Impeller Adjustment
- Maximum Interchangeability with 3196
- Optimum Hydraulic Performance
- Fully Open Impeller
- Renewable pump performance

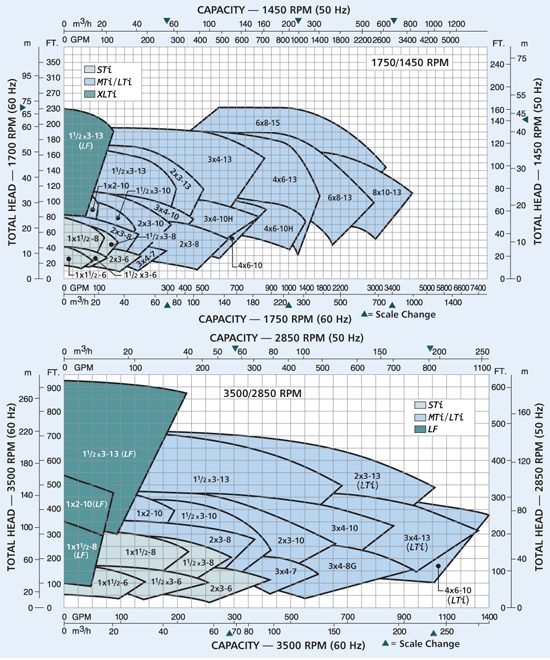

- Full 50/60 Hz Coverage
Markets
- Chemical / Petrochemical
- Pharmaceutical
- Pulp & Paper
- Food & Beverage
- Rubber & Plastic Manufacturing
- Power / Utility
