- Heavy Duty Construction
- Large Range
- Solids Handling Semi-Vortex Impellers
- Clean to Heavily Contaminated Water
Ebara – Cast Iron Submersible Pumps
General
Ebara presents an extensive range of high quality cast iron submersible pumps. With flow rates ranging from 40 l/min up to an impressive 5000 l/min Ebara has an option for almost any submersible application. It’s proven, sturdy design features a simple casing and construction layout making service and maintenance an ease. Impeller types vary to cater to a large number range of applications. The DS series provides an efficient option for cleaner water needs where contained solids range up to 7mm in size. The Ebara range then caters for everything up to 100mm solids in the DMLV Submersible Vortex Pumps.
Related Information
Additional Information
Specifications

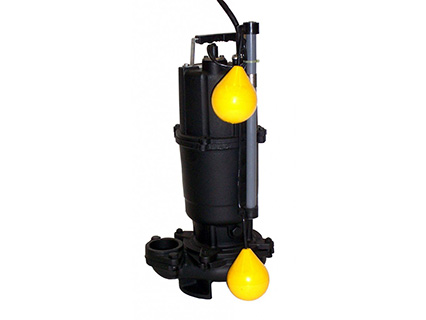

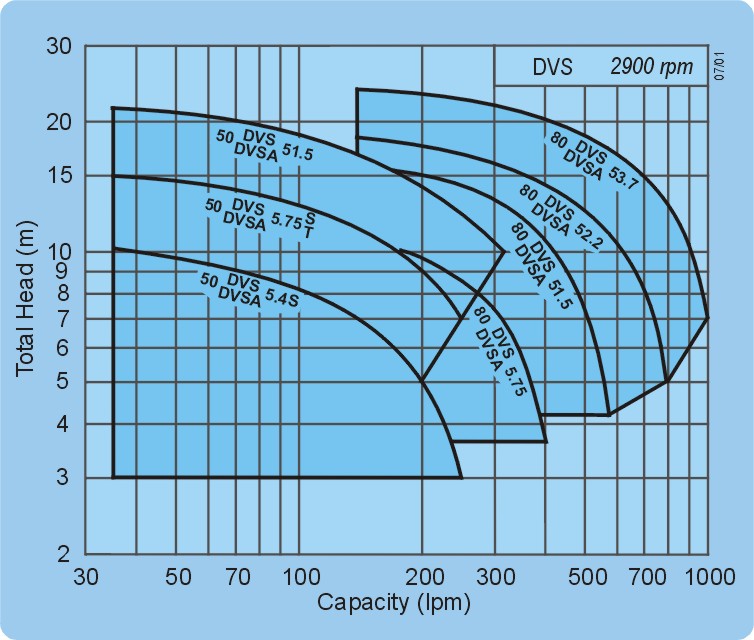

DVS & DVSA Submersible Semi Vortex Pumps
Motor Output: 0.4 to 0.75 kW (1ph) Manual or Auto, 0.75 to 3.7 kW (3ph) Manual or Auto
Outlet Size: 50 to 80 mm
Flow Rates: 40 to 1000 lpm
Head: 3 to 25 m
Max Liquid temp: 40oC
Max. immersion: 4m (0.4 to 1.5 kW), 8m (2.2 to 3.7 kW)
Max. solids: 32 to 56 mm ( depending on model)

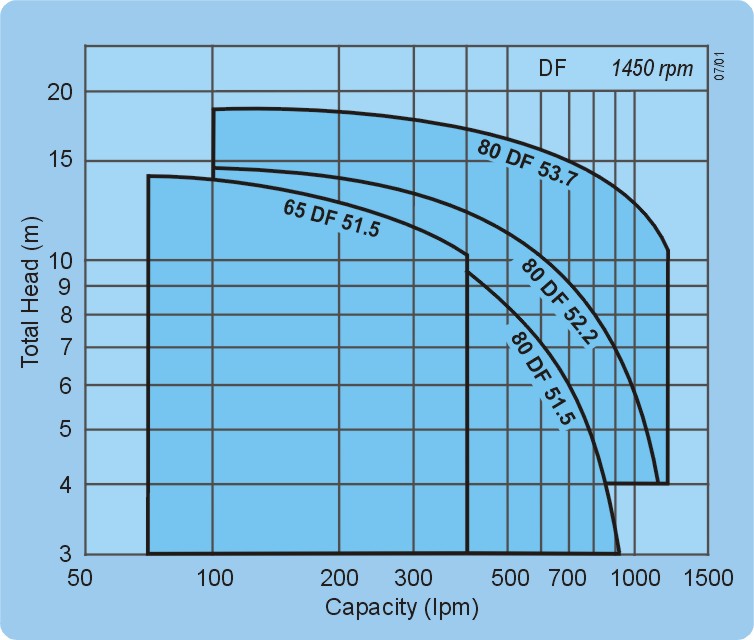

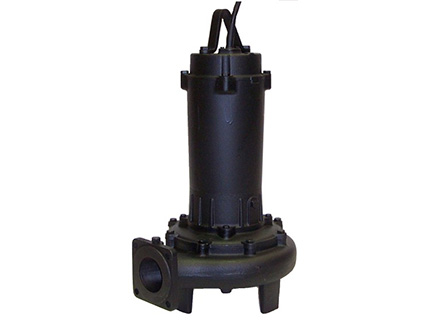

DF Submersible Sewage Pumps
Motor Output: 1.5 to 3.7 kW (3ph) Manual only
Outlet Size: 65 to 80 mm
Flow Rates: 100 to 1200 lpm
Head: 3 to 18 m
Max Liquid temp: 40oC
Max. immersion: 8m
Max. solids: 40 or 46 mm (depending on model)

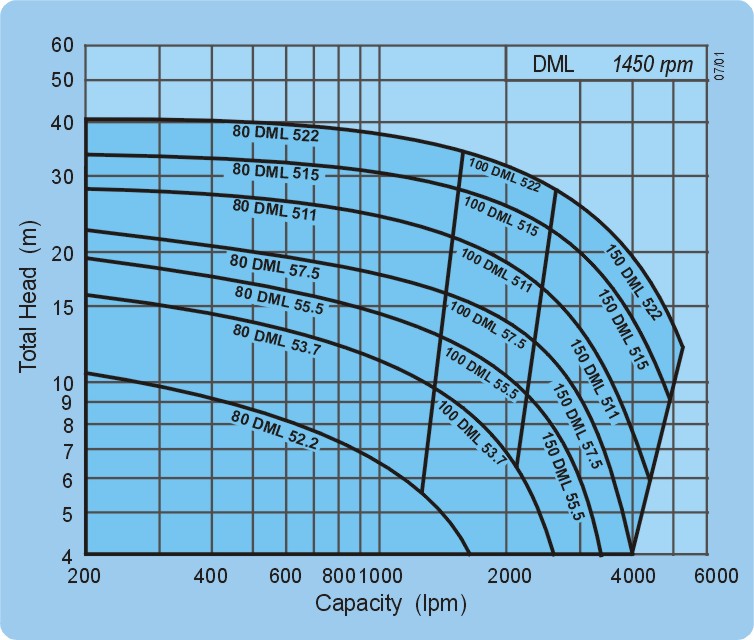

DML Submersible Sewage Pumps
Motor Output: 2.2 to 22 kW (3ph) Manual only
Outlet Size: 80 to 150 mm
Flow Rates: 200 to 5000 lpm
Head: 4 to 40 m
Max Liquid temp: 40oC
Max. immersion: 8m
Max. solids: 76 mm

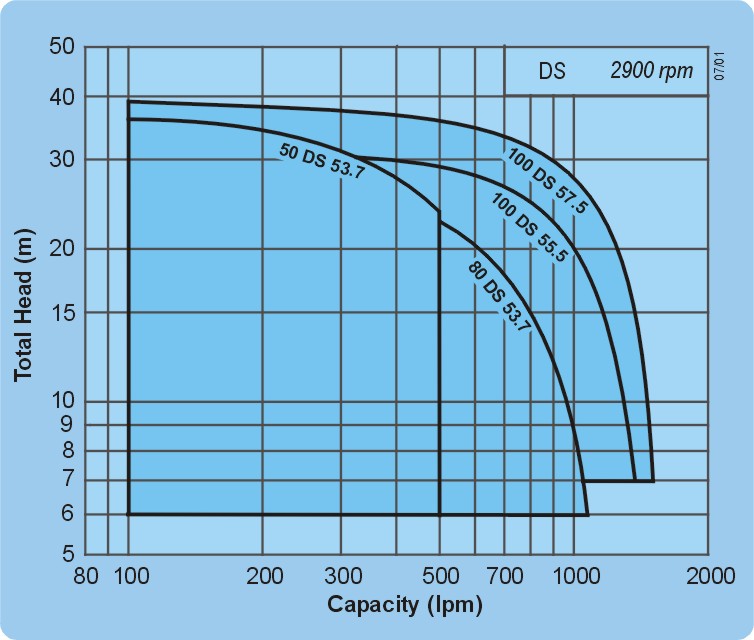

DS Submersible Sump Pumps
Motor Output: 3.7 to 7.5 kW (3ph) Manual only
Outlet Size: 80 to 100 mm
Flow Rates: 100 to 1500 lpm
Head: 6 to 39 m
Max Liquid temp: 40oC
Max. immersion: 8m
Max. solids: 7 mm
Features
- Heavy Duty Cast Iron Construction
- Capable of passing solids up to 100mm in size (see specifics specifications relating to models)
- Sturdy bearing arrangements ensuring long life
