Robust vertical multistage pumps providing high discharge heads and high efficiency. In-line design requires minimal floor space for installations.

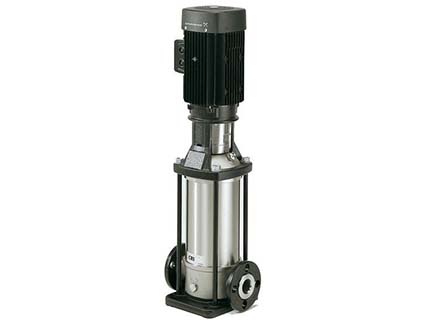

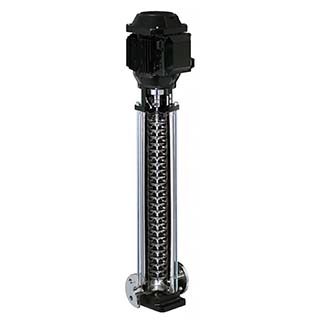

Ebara – Vertical Multistage
General
The Ebara EVM vertical multistage pumps offer technically advanced designs to meet market demands, and feature the use of IEC standard motors, and inbuilt thrust bearing for models over 1.5 Kw. (Above 3.0 kW for EVMG 18).
Stainless steel components are of high quality, and the unique bulge forming process produces rugged construction with increased wall thickness and assures component integrity.

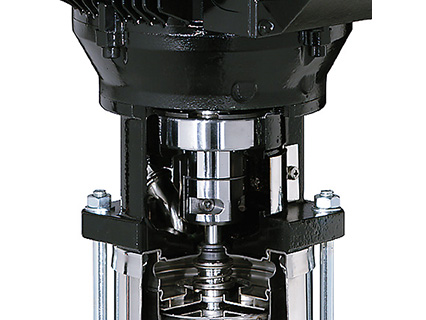

Ebara’s robust construction extends to critical internal components such as the impellers and intermediate casings. With other features including self aligning liner rings, square edged spline shaft, and tungsten carbide lower bearings, the result is a product of exceptional quality and reliability.
Suitable for many applications –
- Industrial, commercial and agricultural applications
- Water treatment plants (reverse osmosis, filtration)
- Boiler feed – Irrigation systems – Fire fighting
- Pumping of hot or cold water for HVAC systems
- For the pumping or boosting of water in general
Related Information
Additional Information
Specifications
Motor output: up to 15 kW
Outlet size: 25 to 50 mm
Flow rates: 20 to 400 lpm
Head: up to 240 m
Liquid temperature: -15 oC to 120 oC
Max. working pressure: 15 Bar (Oval Flange) 25 Bar (Round Flange)
Features
- IEC Standard motors used
- In-built thrust bearing – models over 2.2kW 9 3.0kW for EVMG 18)
- Robust construction.
- Installation to industry accepted dimensions.
- Tungsten Carbide lower pump bearing.
- Anti erosion measures for longer life.
- SiC/Carbon/Viton mechanical seal.
